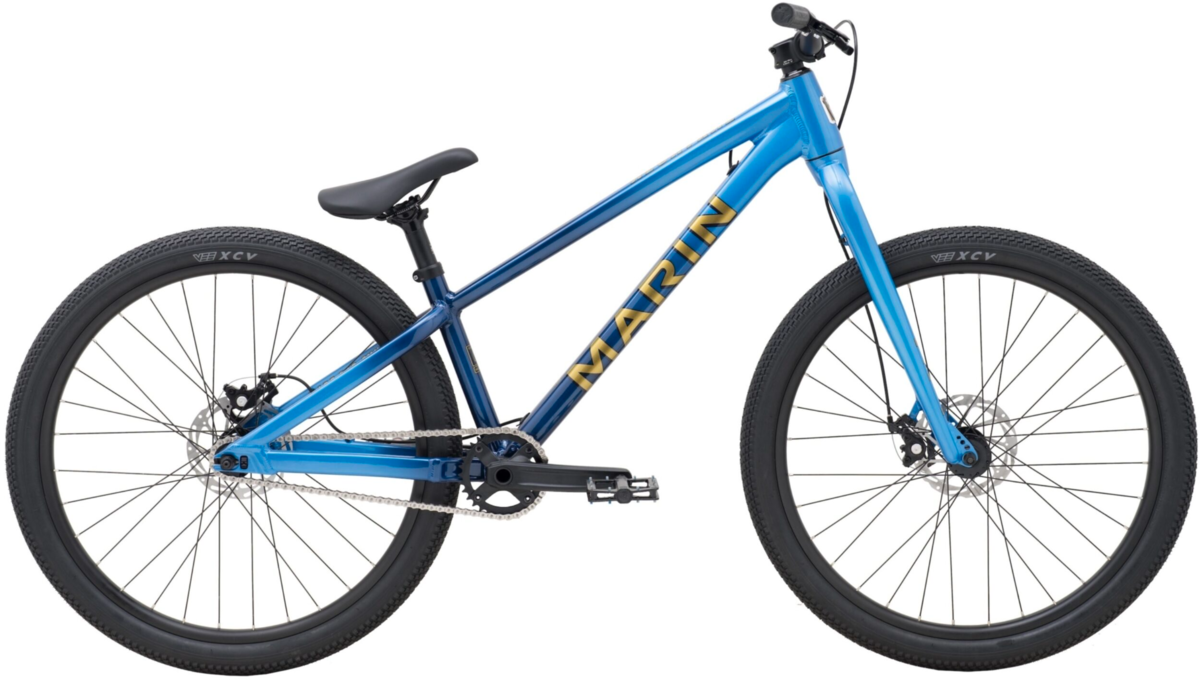

Marin Alcatraz 1
Details
The Alcatraz 1 allows the rider to follow in Matt Jones’ footsteps to build and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park the Alcatraz has what you need to take care of business.
The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
| FRAME SIZE | SHORT | LONG |
|---|---|---|
| STACK (mm) | 575 | 580 |
| REACH (mm) | 385 | 430 |
| HEADTUBE ANGLE | 69° | 69° |
| HEADTUBE LENGTH (mm) | 115 | 120 |
| SEATTUBE ANGLE | 69° | 69° |
| SEATTUBE LENGTH (mm) | 320 | 320 |
| TOPTUBE EFFECTIVE (mm) | 600 | 646 |
| BB HEIGHT (mm) | 317 | 317 |
| BB DROP (REAR/FRONT) (mm) | 22 | 22 |
| CHAINSTAY (mm) | 395 | 395 |
| WHEELBASE (mm) | 1037 | 1083 |
| STANDOVER HEIGHT (mm) | 370 | 400 |
| FORK OFFSET (mm) | 42 | 42 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 750 | 750 |
| STEM LENGTH (mm) | 40 | 40 |
| CRANK LENGTH (mm) | 170 | 170 |
Specs
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Fork | Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Hubs |
Front: Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing Rear: Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD |
| Cassette/Freewheel | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Brakes | Tektro MD-M280 Mechanical Disc 160mm Rotor |
| Brake Levers | Tektro CL-330TS Alloy |
| Handlebars | Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin MTN, Closed End |
| Stem | Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
| Accessories & Extras | Marin Chain Tension Device |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Fade / Small / 26-inch | 843346129604 | 739116001 |
| Blue Fade / Large / 26-inch | 843346129611 | 739116002 |
