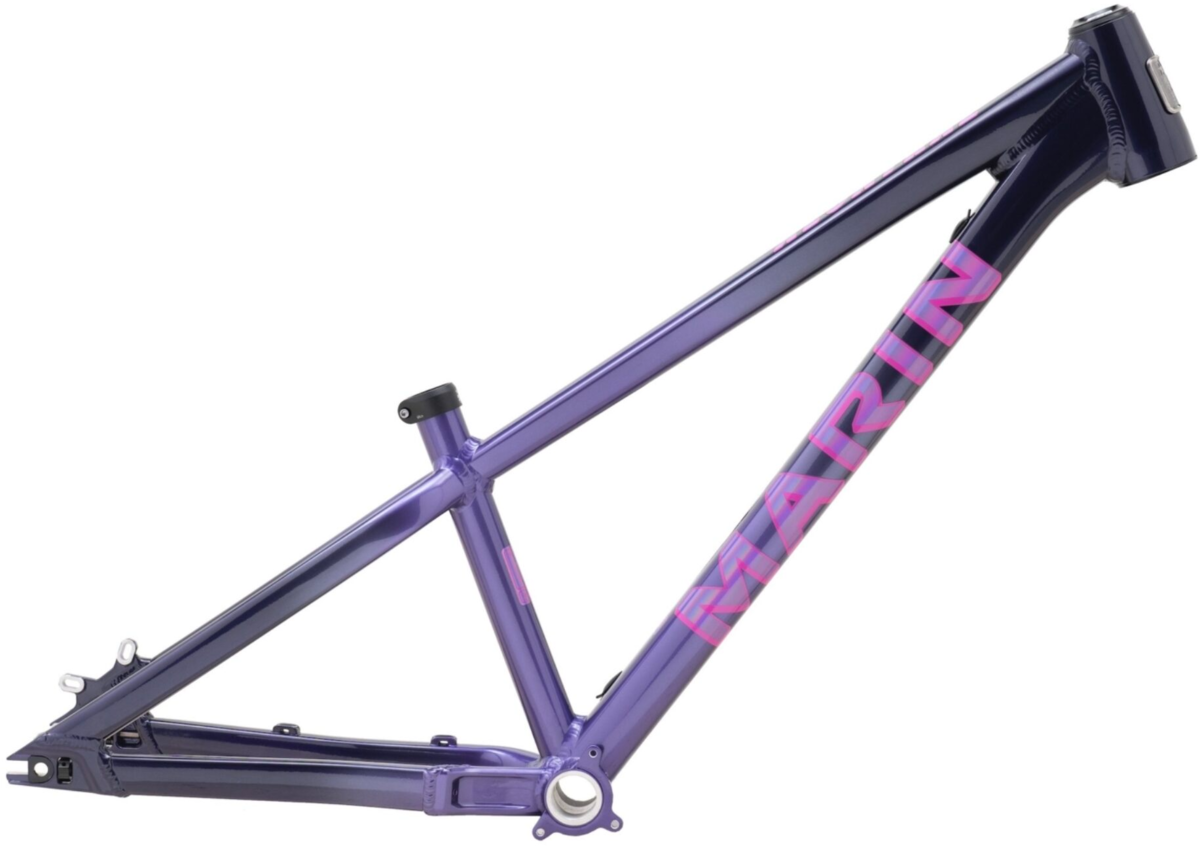

Marin Alcatraz Frame Kit
$549.00
Details
The foundation for the Alcatraz build of your dreams. The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars.
The Main Alcatraz frame kit comes supplied with an FSA headset, Marin chain tension device and Marin seat clamp. Available in two frame sizes, regular and long.
| FRAME SIZE | SHORT | LONG |
|---|---|---|
| STACK (mm) | 575 | 580 |
| REACH (mm) | 385 | 430 |
| HEADTUBE ANGLE | 69° | 69° |
| HEADTUBE LENGTH (mm) | 115 | 120 |
| SEATTUBE ANGLE | 69° | 69° |
| SEATTUBE LENGTH (mm) | 320 | 320 |
| TOPTUBE EFFECTIVE (mm) | 600 | 646 |
| BB HEIGHT (mm) | 317 | 317 |
| BB DROP (REAR/FRONT) (mm) | 22 | 22 |
| CHAINSTAY (mm) | 395 | 395 |
| WHEELBASE (mm) | 1037 | 1083 |
| STANDOVER HEIGHT (mm) | 370 | 400 |
| FORK OFFSET (mm) | 42 | 42 |
Specs
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
|---|---|
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Accessories & Extras | Marin Chain Tension Device, Marin MTB Seat Clamp, Bolt Type |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Purple Fade / Small / 26-inch | 843346130839 | 739093001 |
| Purple Fade / Large / 26-inch | 843346130846 | 739093002 |
