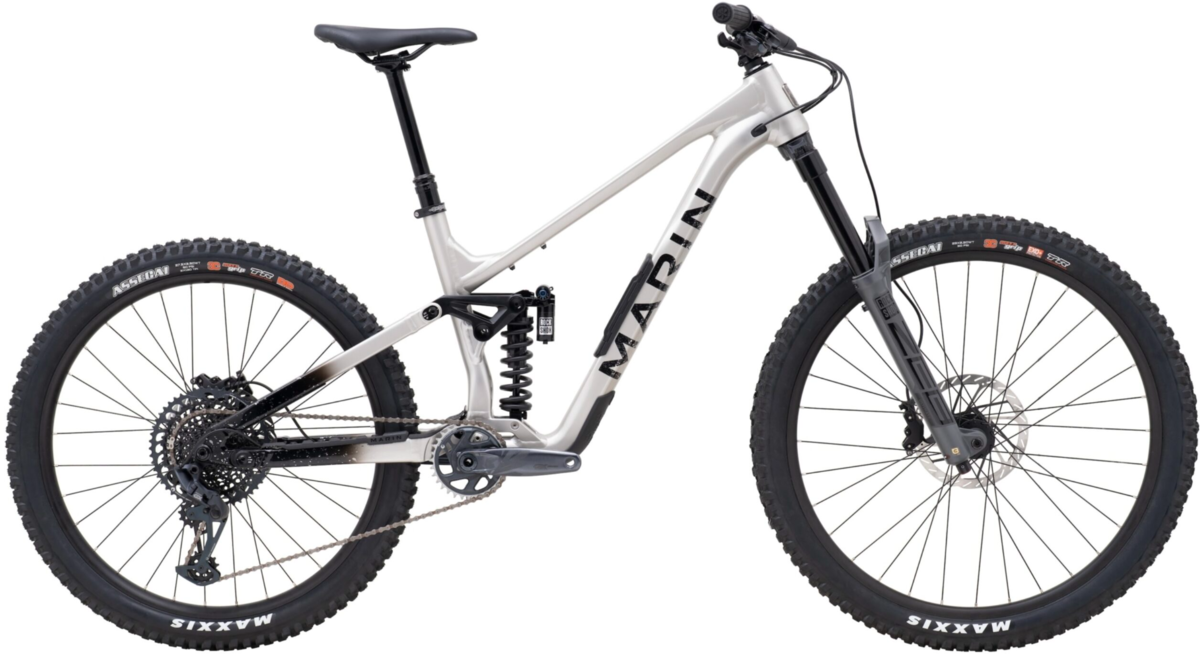

Marin Alpine Trail XR
Details
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
"XR" = "Xtra Rad" here at Marin, and like the XR models that have preceded the new Alpine Trail, we created a model for the more discriminating rider. We focused our efforts on building a bike with high performance RockShox Ultimate-level suspension, a SRAM GX Eagle Lunar 12-speed drivetrain and DB8 4-piston brakes - all equipment that helps the rider level up, but without blowing the budget. Don't forget the Maxxis rubber and our proprietary CNC machined 35mm stem and matching Trail Bar.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 620.08 | 633.51 | 642.6 | 646.93 |
| REACH (mm) | 430 | 460 | 490 | 520 |
| HEADTUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
| HEADTUBE LENGTH (mm) | 100 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 79.2° | 79° | 78.8° | 78.6° |
| SEATTUBE LENGTH (mm) | 400 | 420 | 430 | 460 |
| TOPTUBE EFFECTIVE (mm) | 556 | 592 | 626 | 659 |
| BB HEIGHT (mm) | 352 | 352 | 352 | 352 |
| BB DROP (REAR/FRONT) (mm) | 45497 | 45497 | 45497 | 45497 |
| CHAINSTAY (mm) | 435 | 435 | 435 | 435 |
| WHEELBASE (mm) | 1211.42 | 1248.11 | 1282.57 | 1317.8 |
| STANDOVER HEIGHT (mm) | 683.32 | 68 9.88 | 695.6 | 698.13 |
| FORK OFFSET (mm) | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER (mm) | 34.9 | 34.9 | 34.9 | 34.9 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 35 | 35 | 35 | 35 |
| CRANK LENGTH (mm) | 160 | 160 | 160 | 160 |
Specs
| Frame | All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset |
| Rear Shock | RockShox Super Deluxe Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune |
| Wheels | Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Tires |
Front: Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+ Rear: 27.5x2.5" DoubleDown, Tubeless compatible |
| Brakes | SRAM DB8 4-Piston Hydraulic Disc , HSC 200mm Rotor |
| Crankset | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
| Bottom Bracket | SRAM DUB MTB 73 |
| Shifters | SRAM GX Eagle Lunar MMX Mount |
| Cassette/Freewheel | SRAM XG 1275 Eagle Cassette 10-52T |
| Rear Derailleur | SRAM GX Eagle Lunar |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Brake Levers | SRAM DB8 Hydraulic Disc |
| Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Chain | SRAM NX Eagle |
| Tape/Grips | Marin Grizzly Lock-On |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
| Saddle | Marin Speed Concept |
| Hubs | Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Spokes | 14g Black Stainless Steel |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Brushed Alloy / Small / 29-inch front, 27.5-inch rear | 843346126191 | 737520001 |
| Brushed Alloy / Medium / 29-inch front, 27.5-inch rear | 843346126184 | 737520002 |
| Brushed Alloy / Large / 29-inch front, 27.5-inch rear | 843346126160 | 737520003 |
| Brushed Alloy / X-Large / 29-inch front, 27.5-inch rear | 843346126177 | 737520004 |
