Marin Four Corners 1

Marin Four Corners 1
  • Color: Black Silver
  • Color: Tan Burgundy
$999.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Order now and pick up in-store for free

Details

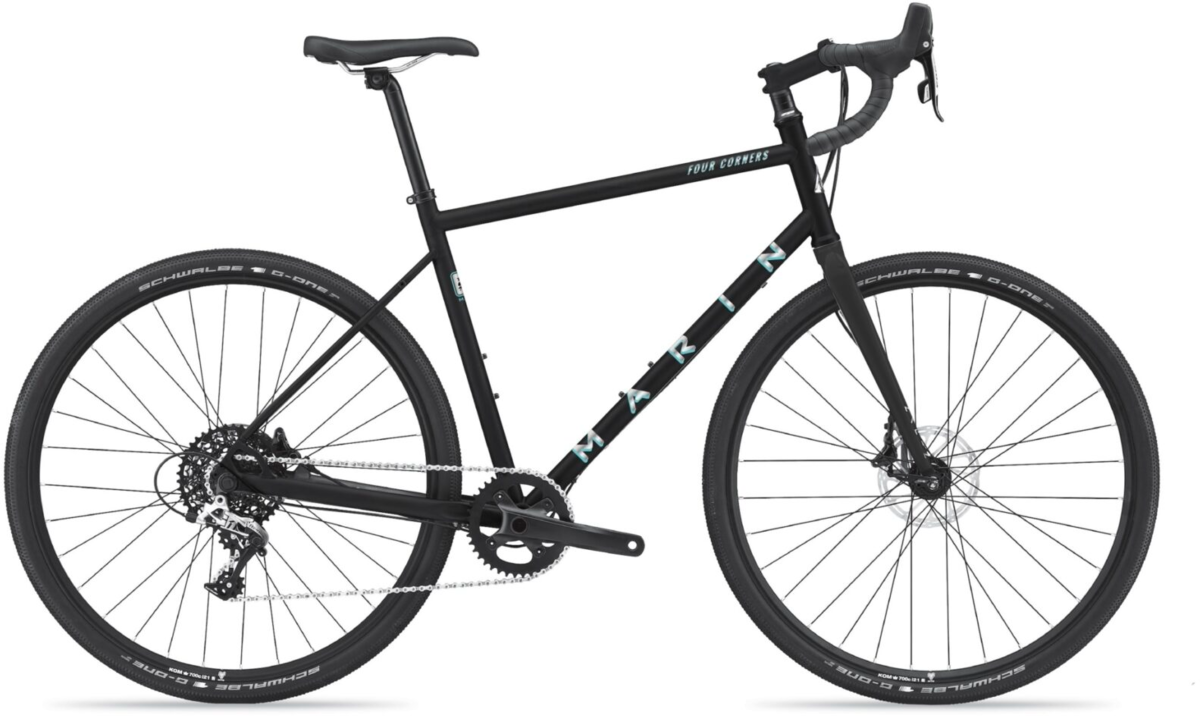

Midweek commute, weekend adventures. No problem for the Marin Four Corners, our steel-framed explorer that’s as comfortable on the asphalt as it is in the dirt.

A butted 4130 CrMo steel frame and fork are designed to be comfortable on rough roads but to also handle fully loaded touring and bikepacking. We’ve included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance and disc brakes to set you up for all conditions and all terrain.

Don’t be fooled, that classic frame material doesn’t mean low-tech. We’ve used biometric fit data to offer five different frame sizes, with size-matched 650b or 700C wheels to perfectly suit riders between 4'11" – 6'4". A high front-end creates all-day comfort and heads-up visibility, off-road-ready geometry means you won’t skip a beat when you head off the asphalt and explore Beyond Road.

40mm wide multi-surface Vee GP tires are up for wherever your adventures take you, while Shimano's supremely reliable Sora 3x9 drivetrain ensures that you'll always have the right gear ratio. Finally, Tektro Spyre-C mechanical disc brakes deliver controlled braking, even when riding fully loaded.

Wheel Size:
- X-Small - Small: 650b
- Medium - X-Large: 700c

Sizes:
FRAME SIZEX-SMALLSMALLMEDIUMLARGEX-LARGE
STACK (mm) 560 580 618 648 679
REACH (mm) 376.7 381 403.3 412.6 426.6
HEADTUBE ANGLE 70° 70° 71° 71° 71°
HEADTUBE LENGTH (mm) 167 188 188 209 252
SEATTUBE ANGLE 74.5° 73.5° 73.5° 72.5° 72°
SEATTUBE LENGTH (mm) 381 422 462 495 528
TOPTUBE EFFECTIVE (mm) 532 553 586 617 647
BB HEIGHT (mm) 291 291 288.5 288.5 288.5
BB DROP (REAR/FRONT) (mm) 53.5 53.5 72 72 72
CHAINSTAY (mm) 432 432 450 450 450
WHEELBASE (mm) 1035 1047 1087 1107 1132
STANDOVER HEIGHT (mm) 668 707 745 777 810
FORK OFFSET (mm) 43 43 49 49 49
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 400 400 420 420 440
STEM LENGTH (mm) 70 70 70 70 70
CRANK LENGTH (mm) 170 170 175 175 175

Specs

Frame Series 1 CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount, Plentiful Gear Mounts
Fork Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount
Rims Marin Aluminum, Double Wall, Disc Specific
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires Vee Tire Co., GPVee, 700/650x40
Bottom Bracket Shimano
Crankset Shimano Sora FC3030, 50-39-30T
Shifters Shimano Sora ST300 3x9-Speed
Front Derailleur Shimano Sora
Rear Derailleur Shimano Sora 9-Speed
Cassette/Freewheel Shimano HG200 9-Speed, 11-34T
Chain KMC X9
Brakes Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebars Marin Butted Alloy, Compact 16º Flared Drop
Tape/Grips Marin Comfort Bar Tape, Shock Absorbing Gel Pads
Stem Marin 3D Forged Alloy
Headset FSA No.8D, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin MTB
Pedals Trekking Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black Silver / X-Small / 650b 843346133182 740042001
Black Silver / Small / 650b 843346133199 740042002
Black Silver / Medium / 700c 843346133205 740043001
Black Silver / Large / 700c 843346133212 740043002
Black Silver / X-Large / 700c 843346133229 740043003
Tan Burgundy / X-Small / 650b 843346133236 740044001
Tan Burgundy / Small / 650b 843346133243 740044002
Tan Burgundy / Medium / 700c 843346133250 740045001
Tan Burgundy / Large / 700c 843346133267 740045002
Tan Burgundy / X-Large / 700c 843346133274 740045003
