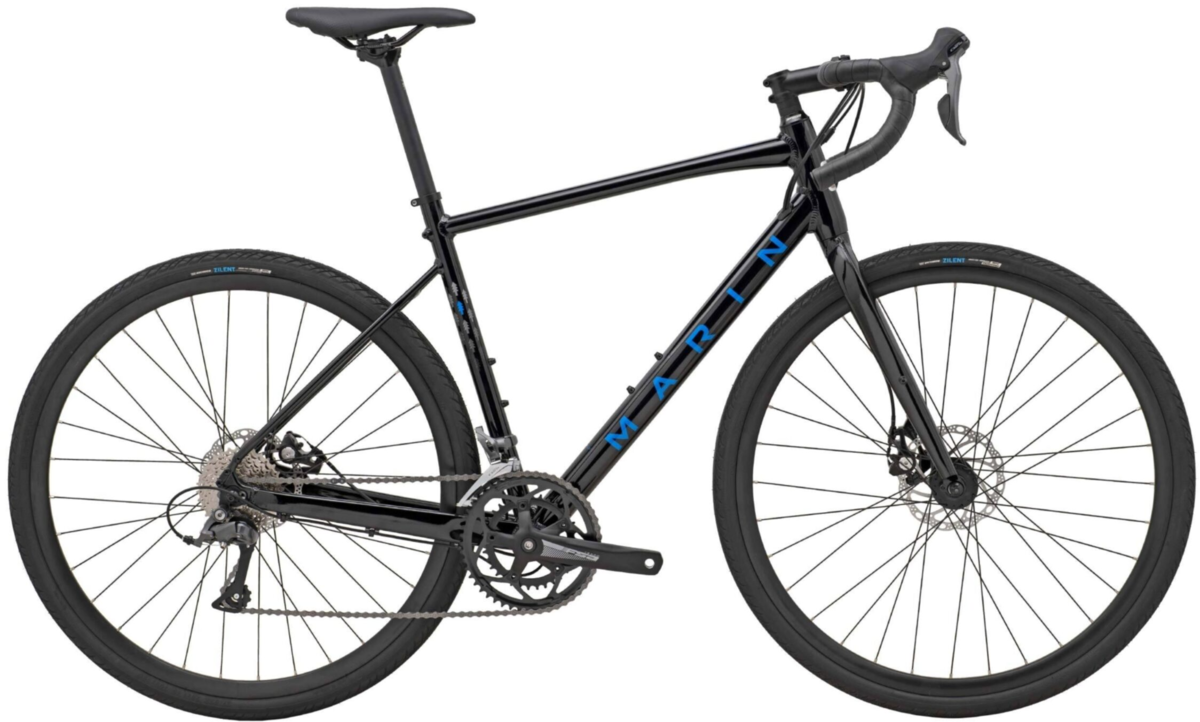

Marin Gestalt

Marin Gestalt
  • Color: Gloss Black/Blue
  • Color: Gloss Blue/Teal
$999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up in-store for free

Details

The Marin Gestalt takes you Beyond Road.

Tarmac and trail, rough roads and muddy commutes, bikepacking, touring, and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.

Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, WTB Exposure 36mm wide tires, Tektro mechanical disc brakes, Shimano Claris 2x8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.

Sizes:
FRAME SIZE505254565860
STACK (mm) 552 568 582 601 620 641
REACH (mm) 367 372 377 387 402 404
HEADTUBE ANGLE 71° 71.5° 71.5° 71.5° 71.5° 71.5°
HEADTUBE LENGTH (mm) 120 135 150 170 190 210
SEATTUBE ANGLE 74.5° 74° 73.5° 73.5° 73.5° 73°
SEATTUBE LENGTH (mm) 460 480 500 520 540 560
TOPTUBE EFFECTIVE (mm) 520 535 550 565 585 600
BB HEIGHT (mm) 276 276 276 276 276 276
BB DROP (REAR/FRONT) (mm) 78 78 78 78 78 78
CHAINSTAY (mm) 432 432 432 432 432 432
WHEELBASE (mm) 1008 1014 1024 1040 1060 1070
STANDOVER HEIGHT (mm) 714 732 755 775 794 814
FORK OFFSET (mm) 50 50 50 50 50 50
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 420 420 440 440 460 460
STEM LENGTH (mm) 70 70 90 90 110 110
CRANK LENGTH (mm) 170 170 175 175 175 175

Specs

Frame Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc
Rims Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
Hubs Forged Aluminum Alloy, 6-Bolt Disc, 32H
Spokes 14g Black Stainless Steel
Tires WTB Exposure Comp 700x36
Bottom Bracket Sealed Bearing Square Taper
Crankset FSA Tempo Compact, 50/34T
Shifters Shimano Claris 2x8-Speed
Front Derailleur Shimano Claris
Rear Derailleur Shimano Claris 8-Speed
Cassette/Freewheel SunRace 8-Speed, 11-32T
Chain KMC Z8
Brakes Tektro MD-C400 Road Mechanical, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebars Marin Butted Alloy, Compact 12º Flared Drop
Tape/Grips Marin Perforated Tape
Stem Marin 3D Forged Alloy
Headset FSA No.8B
Seatpost Marin Alloy, 27.2mm
Pedals Marin Oso OEM Nylon Platform
Saddle Marin Beyond Road Concept

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Black/Blue / 50cm / 700c 843346118813 735958001
Gloss Black/Blue / 52cm / 700c 843346118820 735958002
Gloss Black/Blue / 54cm / 700c 843346118837 735958003
Gloss Black/Blue / 56cm / 700c 843346118844 735958004
Gloss Black/Blue / 58cm / 700c 843346118851 735958005
Gloss Black/Blue / 60cm / 700c 843346118868 735958006
Gloss Blue/Teal / 50cm / 700c 843346118875 735959001
Gloss Blue/Teal / 52cm / 700c 843346118882 735959002
Gloss Blue/Teal / 54cm / 700c 843346118899 735959003
Gloss Blue/Teal / 56cm / 700c 843346118905 735959004
Gloss Blue/Teal / 58cm / 700c 843346118912 735959005
Gloss Blue/Teal / 60cm / 700c 843346118929 735959006
