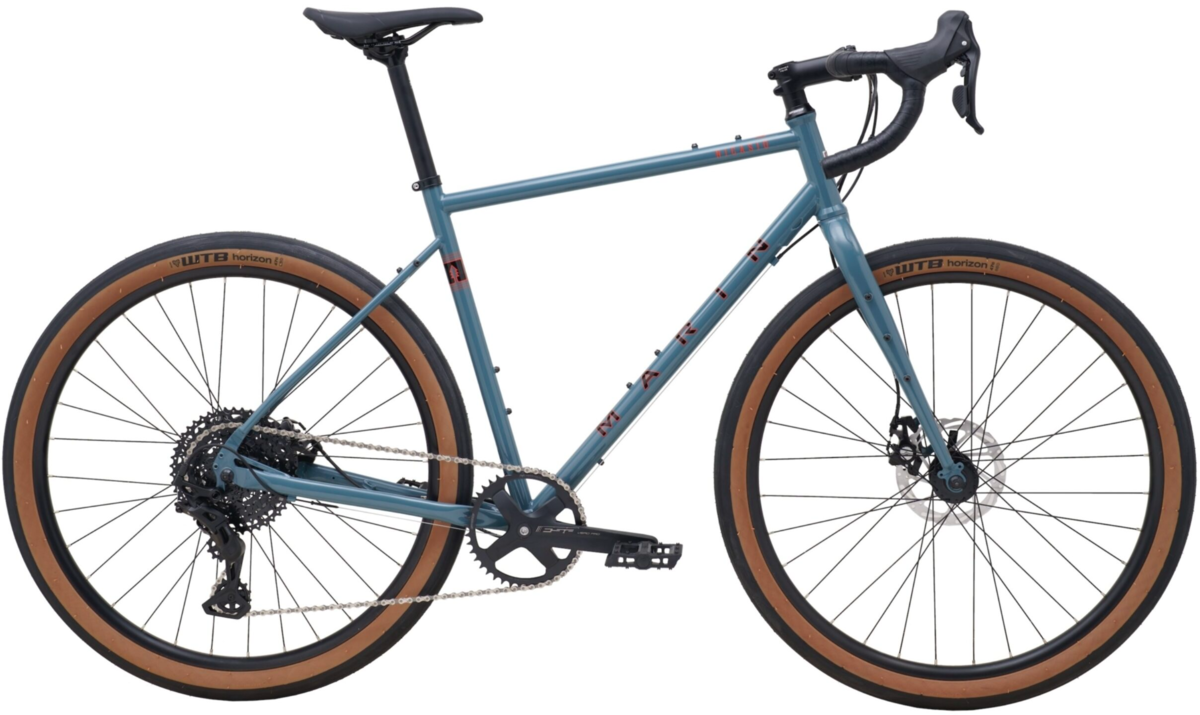

Marin Nicasio +

Marin Nicasio +
  • Color: Grey
  • Color: Teal
$1,099.00
Color:
Size: Select size
Wheel Size: 650b
Please select options Unavailable
Order now and pick up in-store for free

Details

The Marin Nicasio+ is our Nic’ with a modern twist, switching in big-volume 47mm rubber, 650b wheels and a sleek and straightforward 1X drivetrain. We also specced a microSHIFT Sword Black 1x9 drivetrain, powerful Tektro mechanical discs and plenty of Marin components. Those WTB Horizon 650Bx47mm tires not only provide a cloud-like ride, but also look super dreamy with tan sidewalls.

Sizes:
FRAME SIZE505254565860
STACK (mm) 546 564 578 592 606 620
REACH (mm) 375 375 380 390 402 415
HEADTUBE ANGLE 70.5° 71.5 71.5 71.5 71.5 71.5
HEADTUBE LENGTH (mm) 105 120 135 150 165 180
SEATTUBE ANGLE 74.5° 74° 74° 74° 74° 73.5°
SEATTUBE LENGTH (mm) 460 480 500 520 540 560
TOPTUBE EFFECTIVE (mm) 526 537 546 560 575 599
BB HEIGHT (mm) 269 269 269 269 269 269
BB DROP (REAR/FRONT) (mm) 76 76 76 76 76 76
CHAINSTAY (mm) 430 430 430 430 430 430
WHEELBASE (mm) 1017 1014 1024 1039 1055 1073
STANDOVER HEIGHT (mm) 713 733 752 770 788 806
FORK OFFSET (mm) 50 50 50 50 50 50
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 400 400 420 420 440 440
STEM LENGTH (mm) 75 75 90 90 90 90
CRANK LENGTH (mm) 170 170 175 175 175 175

Specs

Frame Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Rims Marin Aluminum Double Wall, 25mm Inner, Disc Specific
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires WTB Horizon, 650Bx47mm
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Crankset FSA Vero Pro, Narrow Wide, 42T
Shifters microSHIFT SWORD Black, 1x9 Specific
Rear Derailleur microSHIFT SWORD Black, 1x9 w/ Clutch Mech
Cassette/Freewheel microSHIFT 9-Speed, 11-46T
Chain KMC X9
Brakes Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers microSHIFT SWORD Black
Handlebars Marin Butted Alloy, Compact 16º Flared Drop
Tape/Grips Marin Comfort Tape
Stem Marin 3D Forged Alloy
Headset FSA ORBIT CE No.8B, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin Beyond Road Concept
Pedals Commute Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN
Grey / 50cm / 650b 843346130099 739071001
Grey / 52cm / 650b 843346130105 739071002
Grey / 54cm / 650b 843346130112 739071003
Grey / 56cm / 650b 843346130129 739071004
Grey / 58cm / 650b 843346130136 739071005
Grey / 60cm / 650b 843346130143 739071006
Teal / 50cm / 650b 843346130150 739072001
Teal / 52cm / 650b 843346130167 739072002
Teal / 54cm / 650b 843346130174 739072003
Teal / 56cm / 650b 843346130181 739072004
Teal / 58cm / 650b 843346130198 739072005
Teal / 60cm / 650b 843346130204 739072006
