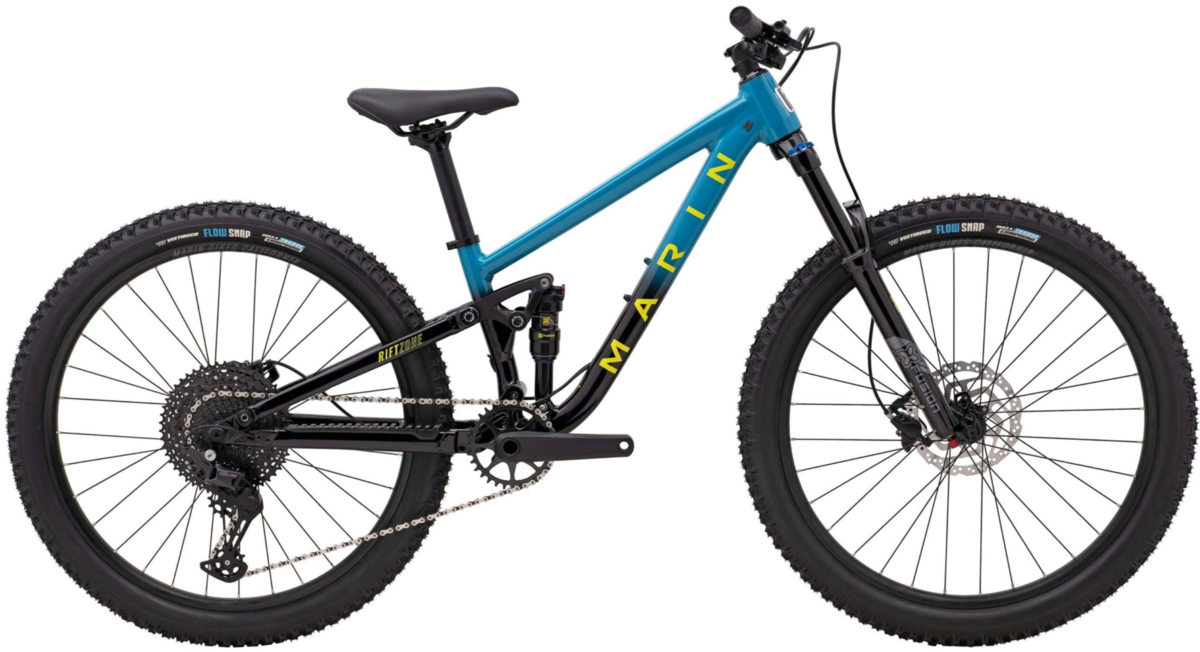

Marin Rift Zone Jr 26-inch
Details
Because young rippers need that Rifty Love too! Our take on the ultimate do-it-all trail bike, bringing big-bike performance for younger riders.
The Marin Rift Zone 26 is made to party, just like the full-sized Rifty. It has 26" wheels that are a little smaller than our full-sized bikes, making it the perfect gateway ride for tweeny riders. And just like the 'grown up' Rift Zone, it has 130mm rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
Got another little shredder on the way? The Rift Zone 26 shares the same frame, fork and shock as the Rift Zone 24. Simply swap the wheels and cranks to downsize it to 24" as the perfect hand-me-down.
| FRAME SIZE | ONE SIZE |
|---|---|
| STACK (mm) | 537.57 |
| REACH (mm) | 380 |
| HEADTUBE ANGLE | 65.5° |
| HEADTUBE LENGTH (mm) | 95 |
| SEATTUBE ANGLE | 76° |
| SEATTUBE LENGTH (mm) | 315 |
| TOPTUBE EFFECTIVE (mm) | 515.17 |
| BB HEIGHT (mm) | 308.5 |
| BB DROP (REAR/FRONT) (mm) | 10 |
| CHAINSTAY (mm) | 425 |
| WHEELBASE (mm) | 1089 |
| STANDOVER HEIGHT (mm) | 614 |
| FORK OFFSET (mm) | 42 |
| SEATPOST DIAMETER (mm) | 30.9 |
| HANDLEBAR WIDTH (mm) | 720 |
| STEM LENGTH (mm) | 45 |
| CRANK LENGTH (mm) | 170 |
Specs
| Frame | Series 3 6061 Aluminum, 26” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |
| Rear Shock | X-Fusion O2 Pro R, 190x45mm, Custom Tune, M8x25mm Hardware |
| Rims | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific |
| Hubs |
Front: Forged Alloy, 100x15mm, Centerlock Disc, 32H Rear: Forged Alloy, 141mm, Quad Sealed Bearings, Centerlock Disc, 32H |
| Spokes | 14g Stainless Steel |
| Tires | Vee Tire Co., Flow Snap 26x2.4", Tackee Compound, Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length |
| Shifters | Shimano Deore, 11-Speed, SL-5100R |
| Rear Derailleur | Shimano Deore, 11-Speed, SGS |
| Cassette/Freewheel | SunRace, 11-Speed, 11-51T, ED Black |
| Chain | KMC X-11 Silver and Black |
| Brakes | Tektro HDM-280 Hydraulic Disc |
| Brake Levers | Tektro HDM-280 |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin Dual Density |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Gloss Charcoal/Black/Silver / One Size / 26-inch | 843346118400 | 735947001 |
