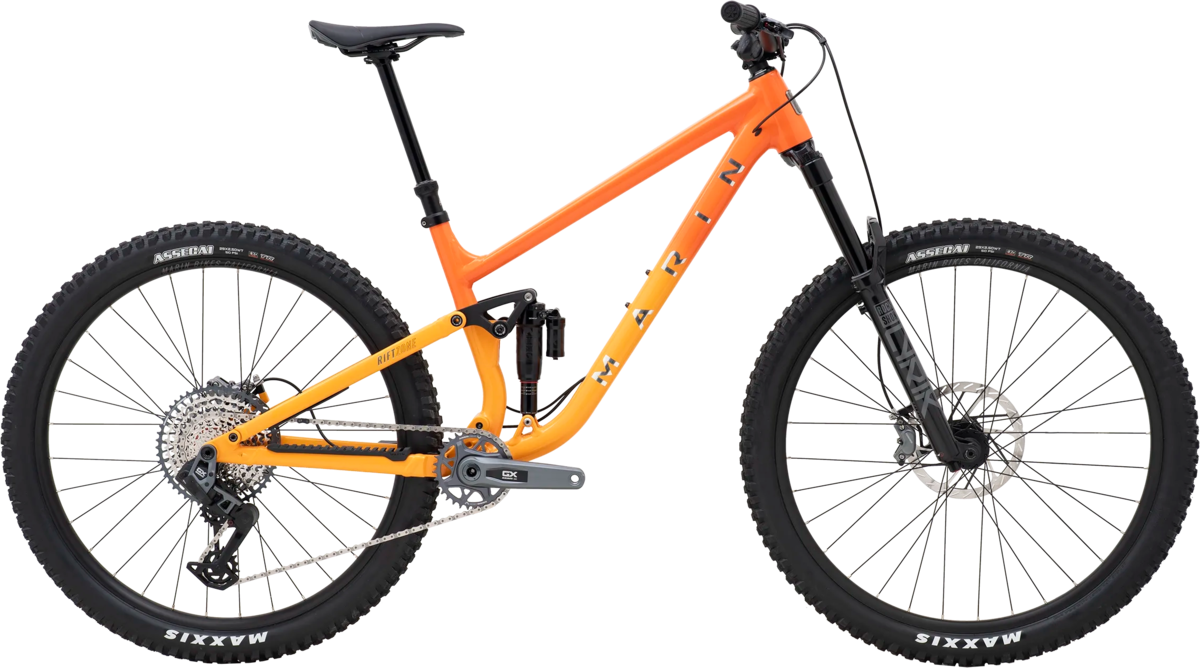

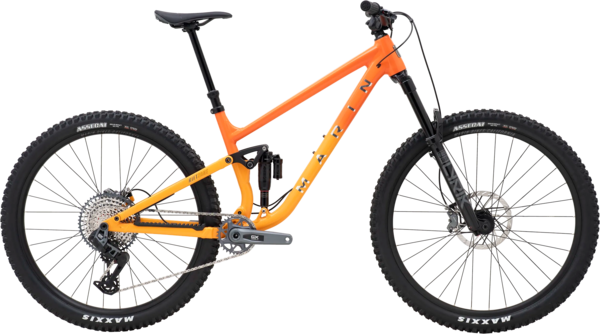

Marin Rift Zone XR AXS
Details
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone brings together 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
XR means Extra Rad. The Marin Rift Zone XR AXS is our hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. RockShox Lyrik Select+ fork and Super Deluxe Select+ shock, Maxxis Assegai tires, loads of SRAM GX Eagle, SRAM Code 4-piston brakes, loads of Marin fine details. And, the cherry on top, we've added SRAM GX Eagle AXS wireless shifting to create our highest-spec, highest-tech Rift Zone alloy model ever.
Wheel Size:
Small - Medium: 27.5-inch
Medium - X-Large: 29-inch
| FRAME SIZE | SMALL | MEDIUM (27.5) | MEDIUM (29) | LARGE | X-LARGE |
|---|---|---|---|---|---|
| STACK (mm) | 569.1 | 600.7 | 628.2 | 637.3 | 641.8 |
| REACH (mm) | 415 | 430 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.1° | 65.1° | 65.1° | 65.1° | 65.1° |
| HEADTUBE LENGTH (mm) | 115 | 120 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH (mm) | 330 | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE (mm) | 550.6 | 568.7 | 605 | 632.1 | 663.2 |
| BB HEIGHT (mm) | 344 | 344 | 348 | 348 | 348 |
| BB DROP (REAR/FRONT) (mm) | 35 | 35 | 35 | 35 | 35 |
| CHAINSTAY (mm) | 430 | 430 | 430 | 430 | 430 |
| WHEELBASE (mm) | 1147.8 | 1164.8 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT (mm) | 661.7 | 677.8 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET (mm) | 44 | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 35 | 35 | 35 | 35 | 35 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 | 170 |
Specs
| Frame | Series 3 6061 Aluminum, 27.5 or 29" Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | RockShox Lyrik Select+, 150mm Travel, 110x15 Maxle Stealth, 42mm Offset |
| Rear Shock | RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Hubs |
Front: Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h Rear: Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Bottom Bracket | SRAM DUB MTB 73 |
| Crankset | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
| Shifters | SRAM AXS POD MMX |
| Rear Derailleur | SRAM GX Eagle AXS T-Type |
| Cassette/Freewheel | SRAM GX 1275 T-Type 10-52T |
| Chain | SRAM GX Eagle T-Type |
| Brakes | SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200/180mm Rotor |
| Brake Levers | SRAM Code Bronze Hydraulic |
| Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Tape/Grips | Marin Grizzly Lock-On |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Orange/Yellow / Small / 27.5-inch | 843346130464 | 739082001 |
| Orange/Yellow / Medium / 27.5-inch | 843346130471 | 739082002 |
| Orange/Yellow / Medium / 29-inch | 843346130488 | 739083001 |
| Orange/Yellow / Large / 29-inch | 843346130495 | 739083002 |
| Orange/Yellow / X-Large / 29-inch | 843346130501 | 739083003 |
