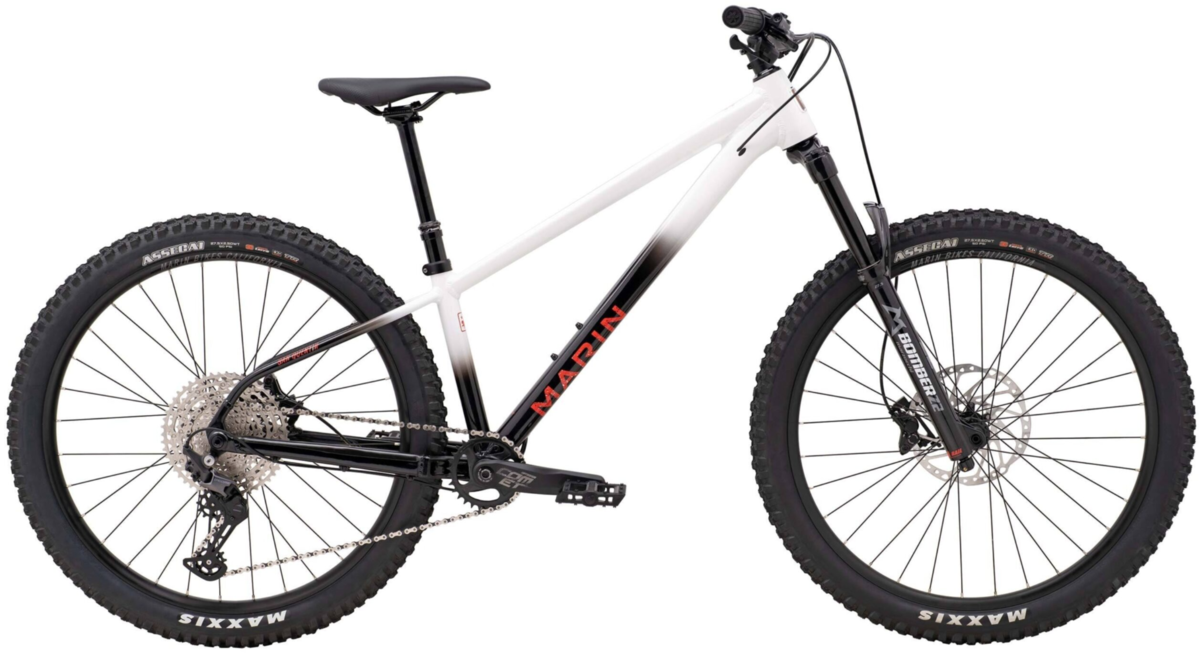

Marin San Quentin 27.5-inch 3
Details
Developed in conjunction with freeride legend Matt Jones and taking its name from the most rough and tumble piece of Marin County, the San Quentin collection lives up to the notoriety of the namesake maximum security California State Prison. Blending the strength an style of our Alcatraz dirt jump frame with the natural trail savvy of the best hardtails, the San Quentin family of aggressive trail hardtails is the perfect mash-up for the modern trail rider.
The San Quentin 3 is the top dog in the SQ family. We’ve worked tirelessly to create the very best-specced San Quentin ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. TRP 4-piston brakes and 12-speed drivetrain? X-Fusion dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 618 | 622.5 | 631.5 | 636 |
| REACH (mm) | 422 | 450 | 470 | 500 |
| HEADTUBE ANGLE | 64° | 64° | 64° | 64° |
| HEADTUBE LENGTH (mm) | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH (mm) | 310 | 340 | 375 | 414 |
| TOPTUBE EFFECTIVE (mm) | 564.7 | 593.7 | 615.8 | 646.8 |
| BB HEIGHT (mm) | 316 | 316 | 316 | 316 |
| BB DROP (REAR/FRONT) (mm) | 50 | 50 | 50 | 50 |
| CHAINSTAY (mm) | 425 | 425 | 425 | 425 |
| WHEELBASE (mm) | 1173.4 | 1203.6 | 1228 | 1260.2 |
| STANDOVER HEIGHT (mm) | 627.7 | 656.4 | 664.8 | 681 |
| FORK OFFSET (mm) | 47 | 47 | 47 | 47 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 35 | 35 | 35 | 35 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 |
Specs
| Frame | Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB |
|---|---|
| Fork | Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle |
| Rims | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible |
| Hubs |
Front: Shimano HB-TC500, 110x15mm, 32H Rear: Shimano FH-TC500, 148x12, 32H, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tires | Maxxis Assegai, 27.5x2.5" MAXX TERRA, EXO Casing, Tubeless Compatible |
| Bottom Bracket | FSA MegaExo 73mm BSA |
| Crankset | FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Shifters | Shimano Deore, 12-Speed, SL-7100R |
| Rear Derailleur | Shimano Deore, 12-Speed, SGS |
| Cassette/Freewheel | SunRace, 12-Speed, MicroSpline, 10-51T |
| Chain | KMC X-12 Silver and Black |
| Brakes | TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203/180mm Rotor |
| Brake Levers | TRP Slate EVO, I-Spec EV Compatible |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Tape/Grips | Marin Grizzly Lock On |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | TranzX YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Marin Oso OE Flat |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Gloss White/Black/Red / Small / 27.5-inch | 843346118691 | 735955001 |
| Gloss White/Black/Red / Medium / 27.5-inch | 843346118707 | 735955002 |
| Gloss White/Black/Red / Large / 27.5-inch | 843346118714 | 735955003 |
| Gloss White/Black/Red / X-Large / 27.5-inch | 843346118721 | 735955004 |
