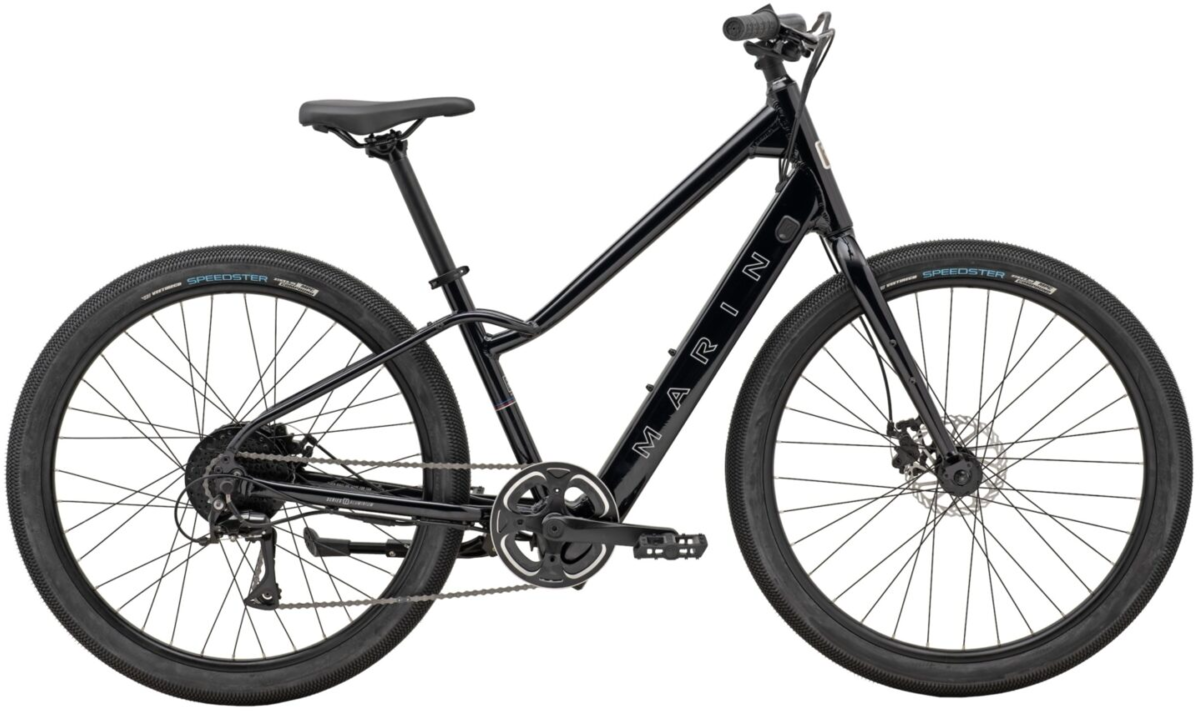

Marin Stinson E
$1,599.00
Details
Our renowned Stinson comfort bike, now with a boost. The Stinson E takes all the beloved features of the standard model, but delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 628.2 | 646.9 | 665.5 | 679.4 |
| REACH (mm) | 340 | 355 | 370 | 381.6 |
| HEADTUBE ANGLE | 68.5° | 68.5° | 68.5° | 68.5° |
| HEADTUBE LENGTH (mm) | 210 | 230 | 250 | 265 |
| SEATTUBE ANGLE | 67° | 67° | 67° | 67° |
| SEATTUBE LENGTH (mm) | 382 | 406 | 444 | 470 |
| TOPTUBE EFFECTIVE (mm) | 606.7 | 629.6 | 652.5 | 670 |
| BB HEIGHT (mm) | 276.5 | 276.5 | 276.5 | 276.5 |
| BB DROP (REAR/FRONT) (mm) | 68 | 68 | 68 | 68 |
| CHAINSTAY (mm) | 490 | 490 | 490 | 490 |
| WHEELBASE (mm) | 1089 | 1111 | 1134 | 1151 |
| STANDOVER HEIGHT (mm) | 618.44 | 618.48 | 674.72 | 675.89 |
| FORK OFFSET (mm) | 40 | 40 | 40 | 40 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 700 | 700 | 700 | 700 |
| STEM LENGTH (mm) | 45 | 45 | 45 | 45 |
| CRANK LENGTH (mm) | 170 | 170 | 170 | 170 |
Specs
| Frame | Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts |
|---|---|
| Fork | CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Hubs |
Front: Forged Aluminum Alloy, 32H Rear: Bafang 250 Watt Hub Motor, 40Nm, 36H |
| Spokes | 14g Stainless Steel |
| Tires | Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection |
| Bottom Bracket | Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper |
| Crankset | Alloy Crank, Steel 38T Chainring, Ring Guard |
| Shifters | Shimano Altus 8-Speed RapidFire |
| Rear Derailleur | Shimano Acera, 8-Speed |
| Cassette/Freewheel | SunRace 8-Speed, 11-34T |
| Chain | KMC Z8 |
| Brakes | Tektro MDM280 Mechanical Disc, 160mm Rotor |
| Brake Levers | Alloy, Long Pull |
| Handlebars | Marin Alloy, 25mm Rise, 18° Backsweep |
| Tape/Grips | Marin County |
| Stem | Marin Alloy |
| Headset | FSA, TH No.10P |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Comfort |
| Pedals | Nylon Platform |
| Battery | Bafang 340Wh, 36V, In-tube |
| Controller/Display | Handlebar Mount LCD Switch & Display |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue / Small / 27.5-inch | 843346119414 | 736699001 |
| Blue / Medium / 27.5-inch | 843346119421 | 736699002 |
| Blue / Large / 27.5-inch | 843346119438 | 736699003 |
| Blue / X-Large / 27.5-inch | 843346119445 | 736699004 |
